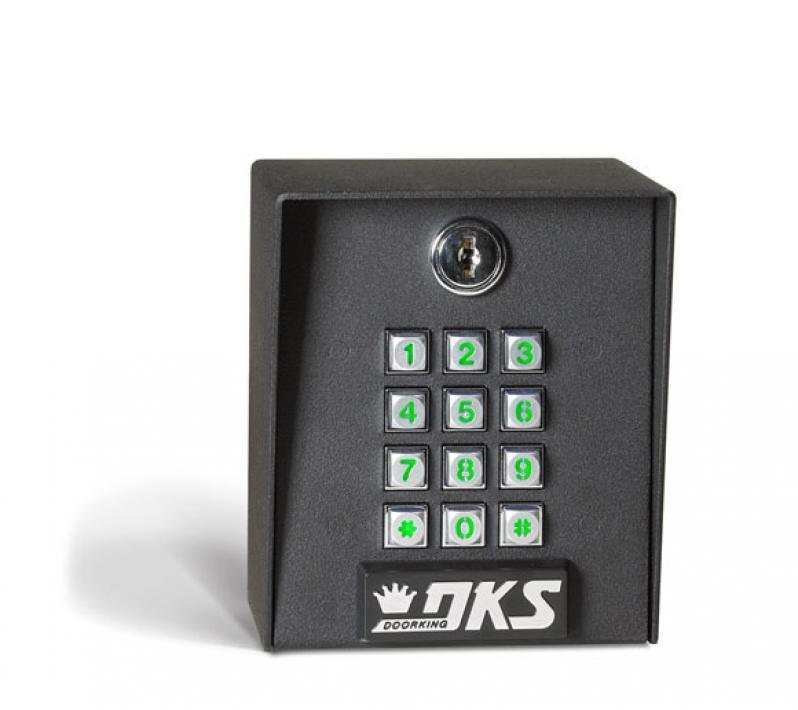

1500 Digital Keypads
Product Details
Brand: DKS Doorking
The DKS 1500 Series family of Keypads provides access control for virtually any application where digital code entry is desired, and they are available for stand-alone applications or for connection to an Access Controller. The 1504 model adds an Intercom Substation to the 1506 Series, allowing voice communication via connection to a master Intercom Station.
Click to read more...
The 1515 Keypad is ideal for controlling doors or gates. The simple to install and use DKS Manager and User Apps (Android Phones Only) make this Keypad a sure bet for either stand-alone use or as a telephone entry controlled access keypad.
Features:
Ideal for controlling doors or gates.
Add or delete individual codes from the keypad (1506 series).
Add or delete individual codes from an Android Smartphone using the DKS App (1515 series).
"Hold" codes to latch open a door or gate.
EEPROM Memory.
LED Lighting.
Lighted keypad.
Specifications:
STAND-ALONE KEYPADS (RELAY OUTPUT)
Model 1515
Stores up to 400 codes, 4 or 5 digit.
Program from the keypad or from an Android Smartphone with the DKS Manager App.
Wrong code lockout settable from 3-9 tries and 1-9 minutes.
Low power mode for solar applications.
Single Form C dry contact relay.
Operates on 12 to 24 volt AC or DC power.
Surface Mount Compact - P/N 1515-080
Surface Mount Stainless Steel Faceplate - P/N 1515-081
Flush Mount Stainless Steel Faceplate - P/N 1515-082
Surface Mount with Intercom Substation - P/N 1504-081
Flush Mount with Intercom Substation - P/N 1504-091
Model 1506
Stores up to 1000 4-digit entry codes.
Six 5-digit entry codes.
Two Form C dry contact relays.
Time zone inputs.
Secondary keypad capability.
Operates on 16 volt AC power.
Surface Mount Stainless Steel Faceplate - P/N 1506-086
Flush Mount Stainless Steel Faceplate - P/N 1506-096
Surface Mount with Intercom Substation - P/N 1504-086
Flush Mount with Intercom Substation - P/N 1504-096
WIEGAND OUTPUT MODELS
These keypads cannot be used in a stand-alone application. They must be connected to an access controller such as DKS 1830 series systems.
Output format is 26-bit wiegand.
Surface Mount Compact - 1815-059
Surface Mount Stainless Steel Faceplate - 1815-051
Flush Mount Stainless Steel Faceplate - P/N 1815-052
Surface Mount with Intercom Substation - P/N 1504-120
Surface Mount Stainless Steel Faceplate with AWID Card Reader - P/N 1815-248
Surface Mount Stainless Steel Faceplate with HID Card Reader - P/N 1815-249
Surface Mount Stainless Steel Faceplate with DK Prox Card Reader - P/N 1815-250
RS 485 OUTPUT MODELS
These keypads cannot be used in a stand-alone application. They must be connected to an access controller such as the DKS Access Plus series systems.
Output format is RS-485
Surface Mount Stainless Steel Faceplate - P/N 1513-081
Flush Mount Stainless Steel Faceplate - P/N 1513-082
