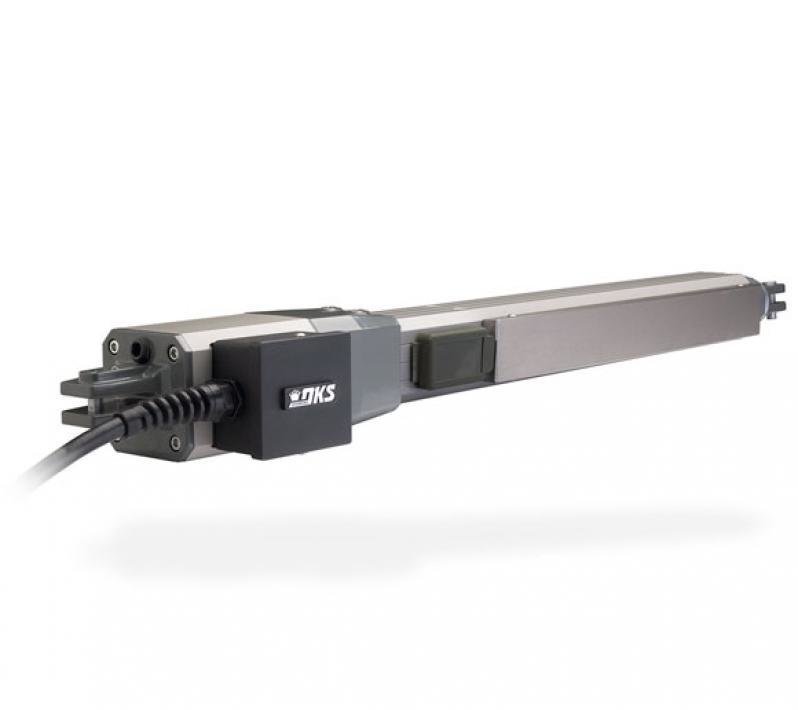

6003 Residential Swing Gate Actuator
Product Details
DKS 6003 Swing Gate Actuators offer convenience and reliability in a compact, aesthetic design. These Actuators mount directly to your gate and pilaster, which simplifies installation without the need for concrete pads.
Click to read more...
The powerful screw-driven pistons in these Actuators connect directly to the gate, eliminating weak mechanical connections, and they are fully enclosed to prevent dirt and other airborne corrosives from contaminating the screw threads. Plus, there is no need to worry about hydraulic leaks, check valves or pumps.
These Actuators feature built-in limit switches that precisely control the start/stop speed and travel of your gate. The microprocessor-based electronic control board provides many advanced features not typically found in Operators in this class, and with a 24 volt DC operating voltage, DKS Actuators are ideal for residential applications.
Features:
Internal adjustable limit switches.
Slow start / slow stop.
Overlap feature for dual swing gate operation.
Magnetic lock output.
Ports for plug-in loop detectors.
Fully enclosed screw drive.
24 VDC operating power.
Built-in battery back-up.
Separate control panel.
Keyed release for manual operation.
Specifications:
Maximum gate width 10-feet. (Assumes gate swings level and is in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator. )
Swings gate 90 degrees in approximately 16-seconds.
Actuator operates at 24 Volts DC power.
Class I applications.
Compliant with UL 325 and 991. (Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or Type B2 entrapment protection devices need to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)
*Dimensions (actuator only): 5"W x 5"H x 35 "L. These dimensions are at the widest part of the actuator. It tapers down to approximately 2-1/2" x 3".
Dimensions (120 Volt deluxe control box): 14.5"W x 24"H x 4.25"D
Dimensions (120 Volt standard control box): 12.5"W x 16.5"H x 4.25"D
Dimensions (24 Volt Solar control box): 13"W x 21"H x 8"D
Options:
Bi-parting gate connection cable.
Magnetic gate lock.
Plug-in loop detectors.
Solar power.
