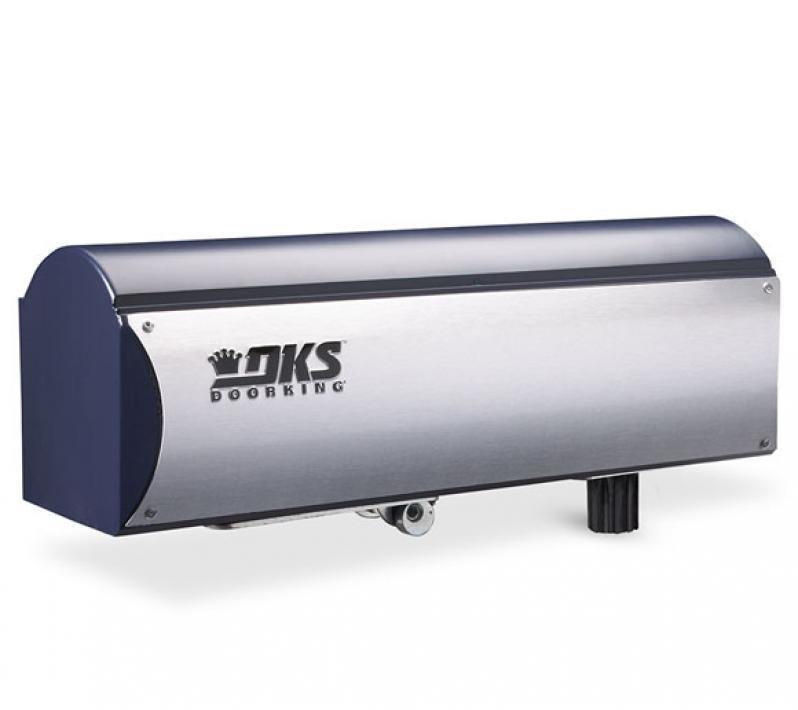

6004 Column Mount Swing Gate Operator
Product Details
DKS 6004 is ideal to operate swing gates that are mounted on large columns. The 6004 mounts directly on the column and simplifies installation by eliminating the need to cut niches on the column, and there is no need for concrete pads. Using a strong screw drive system, there is no need to worry about hydraulic leaks, check valves, or pumps. The 6004 features a keyed release system that allows the gate to be moved by hand if a system failure should occur.
Click to read more...
Features:
Fully enclosed drive mechanism
Adjustable built in limit switches precisely control the start / stop speed, and travel of gate for smooth operation
24 VDC operating power
Batteries included
Built-in battery charger
Ports for Exit and Reverse plug-in loop detectors
90° in approximately 12 seconds
Gate overlap feature for dual gate operation
Magnetic lock power circuit
Built-in reset and test buttons
Maximum run timer
Built-in high current warning
Specifications:
Maximum gate width 8-feet. (Assumes gate swings level and is in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator. )
Maximum gate weight 500 lbs.
Operates at 24 Volts DC power.
Class I applications.
Compliant with UL 325 and 991. (Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or Type B2 entrapment protection devices need to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)
*Dimensions (operator only): 5.13"W x 5.25"H x 16"L.
Actuator main arm: 17.5" in length, with a total Height of 6.5" including the arm drive bolt.
Dimensions (120 Volt deluxe control box): 14.5"W x 24"H x 4.25"D
Dimensions (120 Volt standard control box): 12.5"W x 16.5"H x 4.25"D
Dimensions (Solar control box): 13"W x 21"H x 8"D
Options:
Bi-parting gate connection cable.
Magnetic gate lock.
Plug-in loop detectors.
Solar power.
