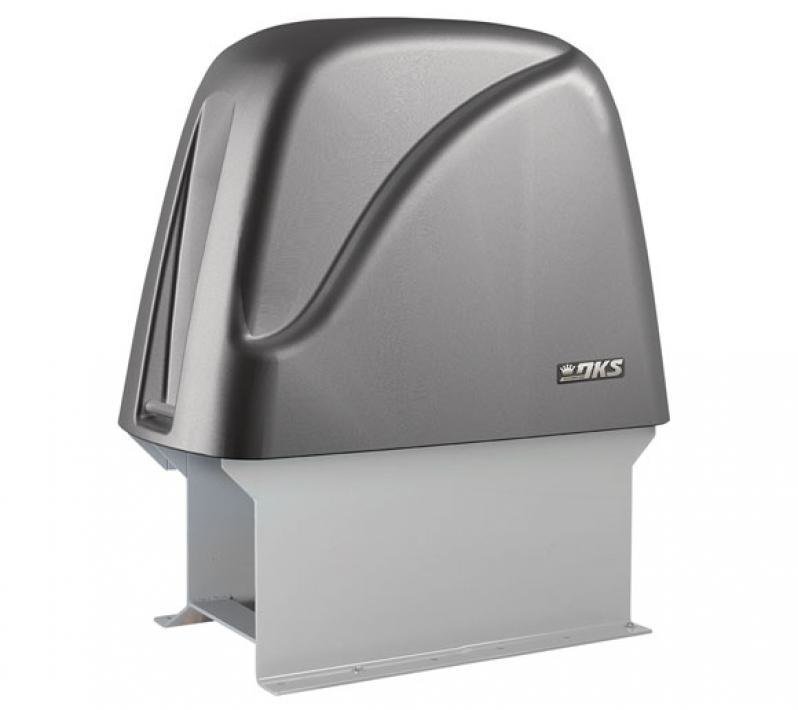

9500 Maximum Security Slide Motor
Product Details
DKS 9500 series of Vehicular Slide Gate Operators are designed for use on very large and very heavy gates in maximum security applications only. These Operators must never be used in applications serving the general public.
Click to read more...
These heavy duty Operators use a high tensile steel alloy roller chain as the pulling medium, which is immune to slippage and the challenges of uneven terrain – and also simplifies installation. User can set the speed of the gate up to 4 ft/sec. (1.2 m/sec.), with an electronic braking option.
Features:
Speed control module.
Slow start / slow stop.
Direct driven limit nuts.
Anti-tailgating feature.
Adjustable partial open..
Gate tracker reporting output.
Built-in diagnostics.
Ports for plug-in loop detectors.
Selectable stop / reverse loop functions.
Two 115 VAC convenience outlets.
Fail-secure operation includes crank for manual operation.
Programming switches.
Built-in 3-button control (open-close-stop)
Built-in power On/Off switch.
Specifications:
Maximum gate length 160-feet.
HP, maximum gate weight*, speed and chain size:
9530 - 3 HP, 10,000 Lbs., 2 ft/sec, #80 chain.
9550 - 5 HP, 15,000 Lbs., 1 ft/sec, #100 chain.
9555 - 5 HP, 10,000 Lbs., 2 ft/sec, #80 chain.
9575 - 7.5 HP, 25,000 Lbs., 2 ft/sec, #100 chain.
(*Assumes gate is on level ground, in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator.)
10:1 or 40:1 gear reduction running in a continuous oil bath (dependant on model).
Electronic braking - all models.
Self-adjusting disc brake with manual release (9555 only).
208, 230, 460 VAC three-phase.
Operator is shipped with chain brackets and 20-feet of #80 or #100 chain (dependant on model).
Class III and IV applications only.
ETL Listed. (Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or Type B2 entrapment protection devices are required to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)
Dimensions: 54 "W x 59 "H x 26 "D
Options:
Plug-in loop detectors.
Gate Tracker reporting (DKS 1833, 1835, 1837 or 1838 access controllers only).
Chain tray (recommended on gates exceeding 20-ft in length).
Non-contact and/or contact sensing devices.
Stop - Go traffic signal.
Heater kit for cold environments.
Surge suppressors.
