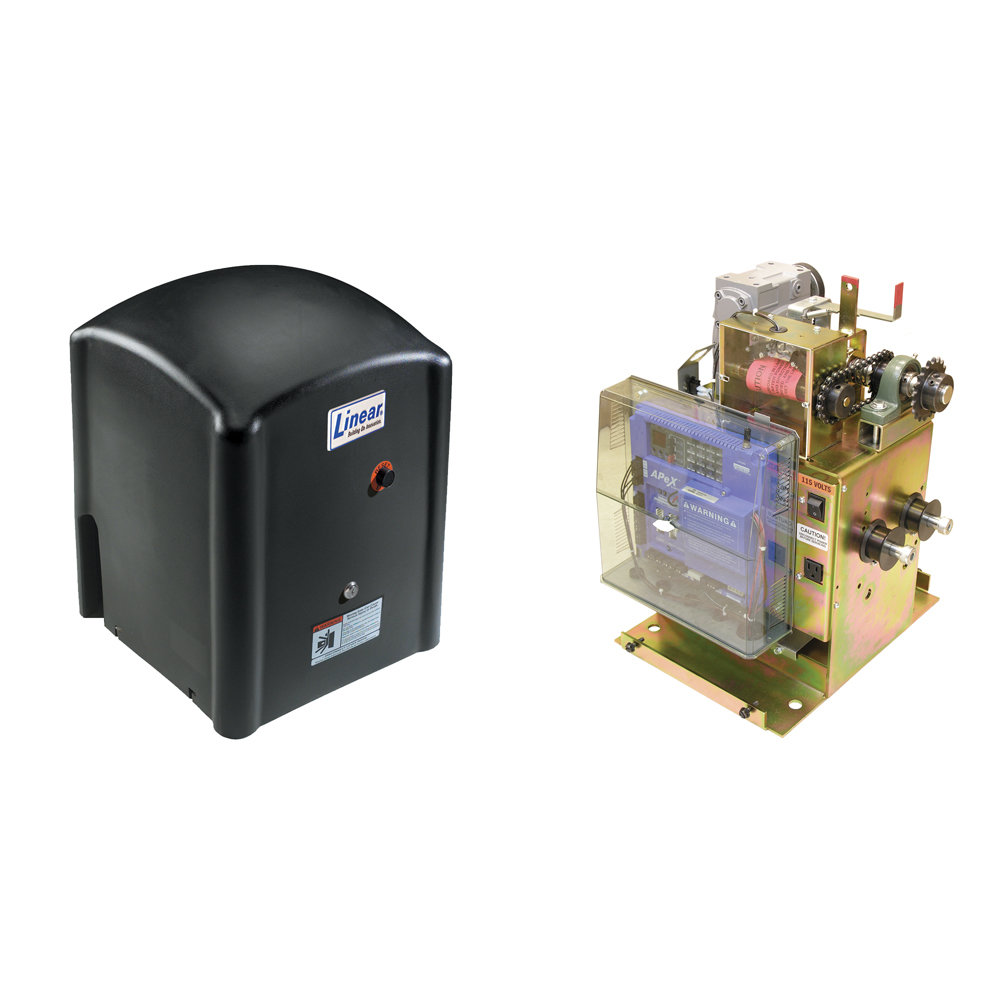

sld-211 Slide Motor
Product Details
Commercial / residential duty slide gate operator with DC battery backup, available in 1/2 horsepower, 115V supply voltage, 12" per second gate speed. Solar power capable with 24 volt solar panels.
Click to read more...
General
APeX Controller
Full transformer run DC powered operator with built-in battery backup
Dual batteries charged by 115 VAC or optional solar panels
Built-in MegaCode receiver
Black polyethylene cover
Full-time 1/2 HP DC motor
Selectable fail-safe or fail-secure modes of operation
Solar power capable
Gear reducer, size 60, 20:1
Soft start/stop
Easy-to-operate emergency manual disconnect handle
Exterior reset button
ETL Listed for UL 325 (Class I-IV) for U.S. and Canada
Electrical
Integral entrapment sensing system with digital set point for quick accurate adjustment and enhanced safety
Continuous-tone entrapment alarm with reset button
LED diagnostic display for ease of setup and troubleshooting
Selectable pre-start and run alarm with provision for ADA compliant visual pre-start and run alarm
Regulated 24 Volt DC power available for access control accessories
Integrated maximum run and auto close timer (0-9 minutes)
Built-in networked dual gate capability using 3-wire shielded cable
Mechanical
Heavy-duty, zinc-plated, steel chassis
#41 Drive chain (31' included)
Universal pad mount standard; optional post mount kit
