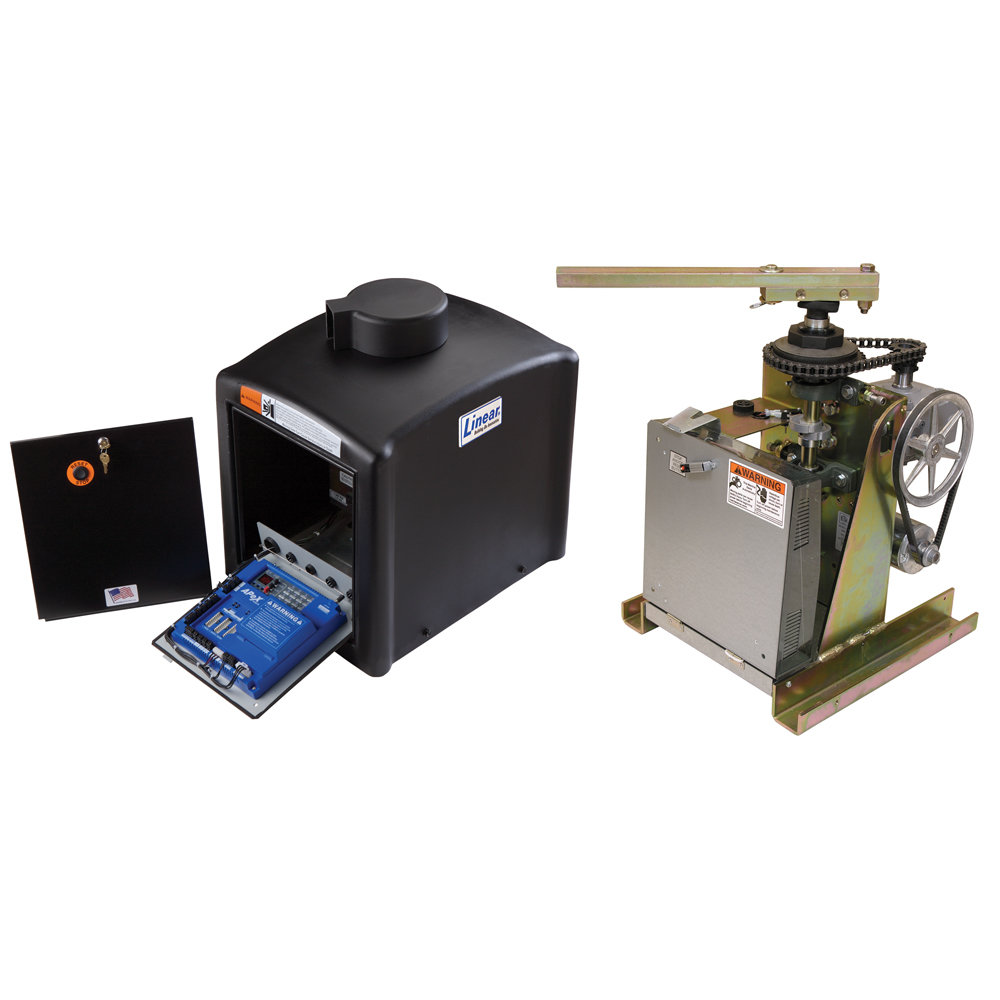

swd-211 Swing Motor
Product Details
Commercial / residential duty swing gate operator with DC battery backup, available in 1/2 horsepower, 115V supply voltage, 12-14 second gate opening speed. Solar power capable with 24 volt solar panels.
Click to read more...
General
APeX™ Controller
Black polyethylene cover
Built-in MegaCode receiver
Full transformer run DC powered operator with built-in battery backup
Dual batteries charged by 115 VAC or optional solar panels
Full-time 1/2 HP DC motor
5" torque eliminator
Selectable fail-safe or fail-secure modes of operation
Solar power capable
Gear reducer, size 60
Soft start/stop
Quick disconnect crank assembly
Exterior reset button
ETL Listed for UL 325 (Class I-IV) for U.S. and Canada
Electrical
Integral entrapment sensing system with digital set point for quick accurate adjustment and enhanced safety
Continuous-tone entrapment alarm with reset button
LED diagnostic display for ease of setup and troubleshooting
Selectable pre-start and run alarm with provision for ADA compliant visual pre-start and run alarm
Regulated 24 Volt DC power available for access control accessories
Integrated maximum run and auto close timer (0-9 minutes)
Built-in networked dual gate capability using 3-wire shielded cable
Mechanical
Heavy-duty, zinc-plated, steel chassis
Lockable steel access door
Universal pad mount standard; optional post mount kit
